Customized Tx Rx 1 Channel CRSF/CVBS video TTL/SBUS/UART to Fiber Converter, FC/Upc Drone FPV Optical 20km/40km/60km

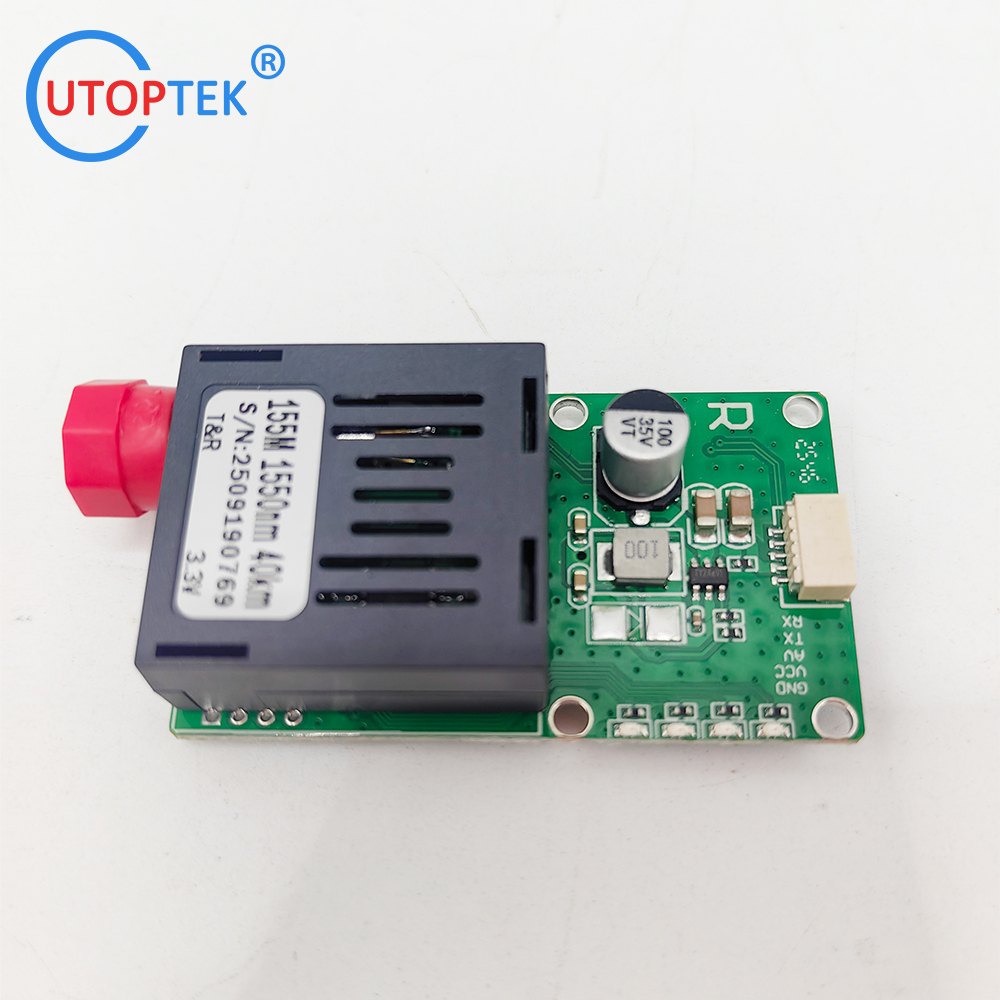

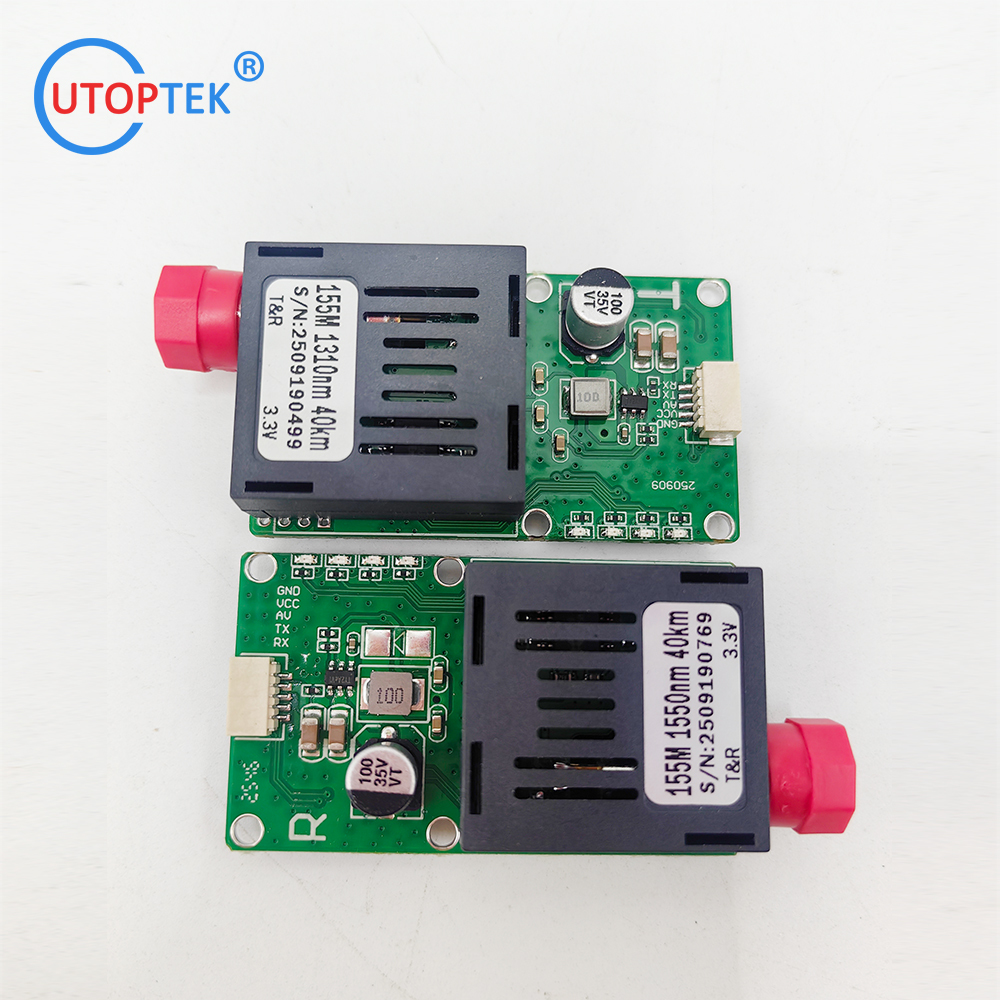

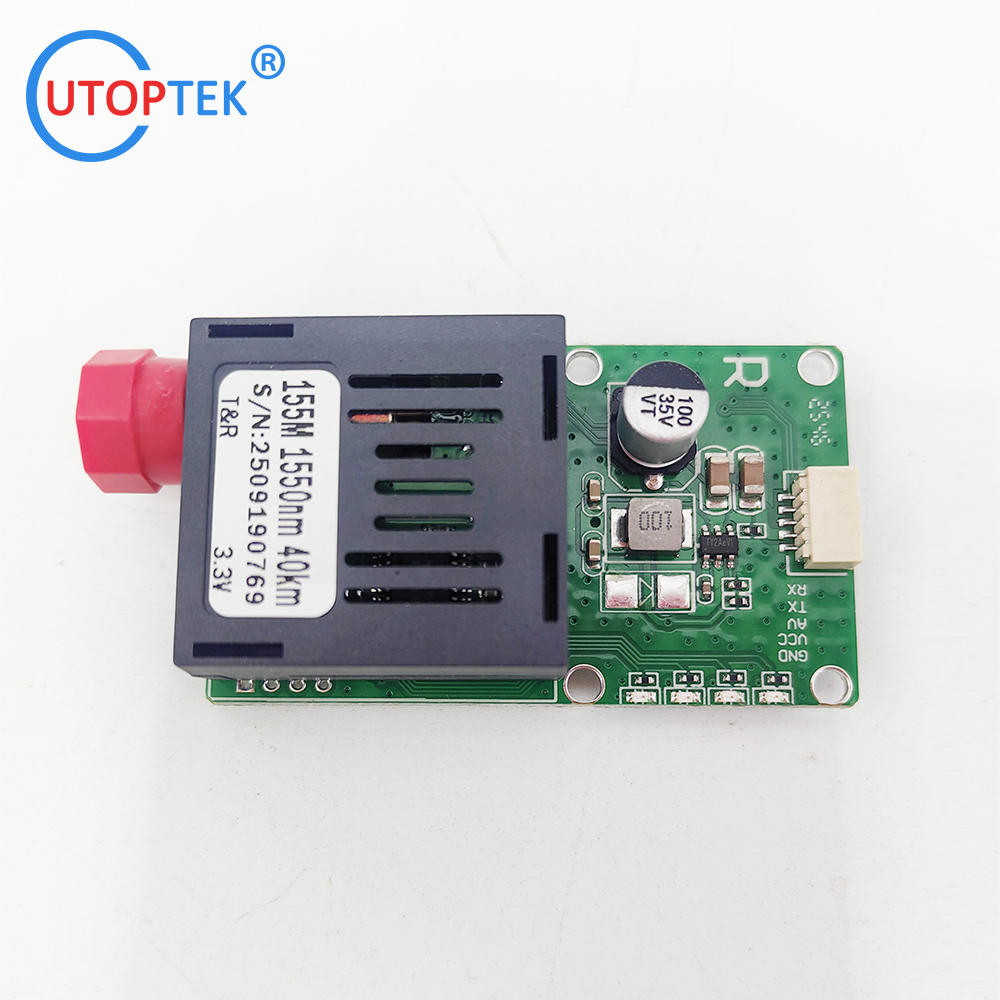

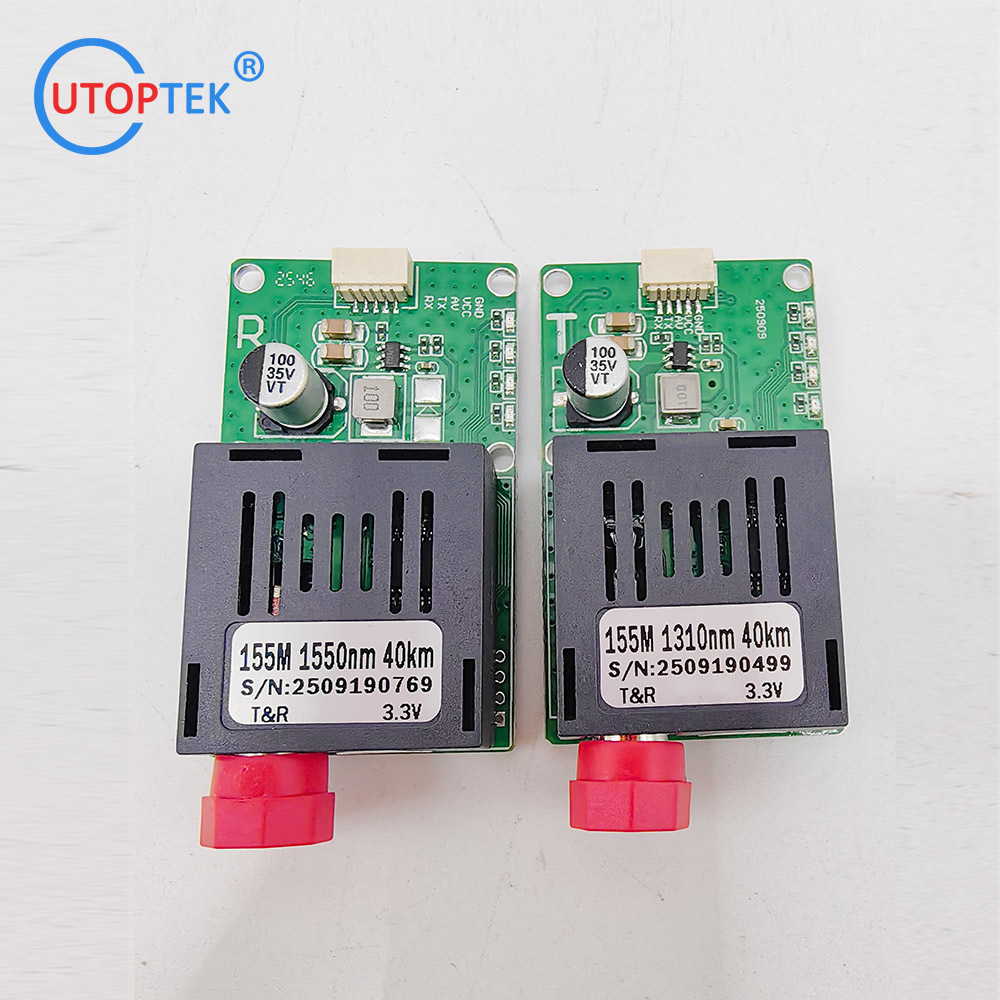

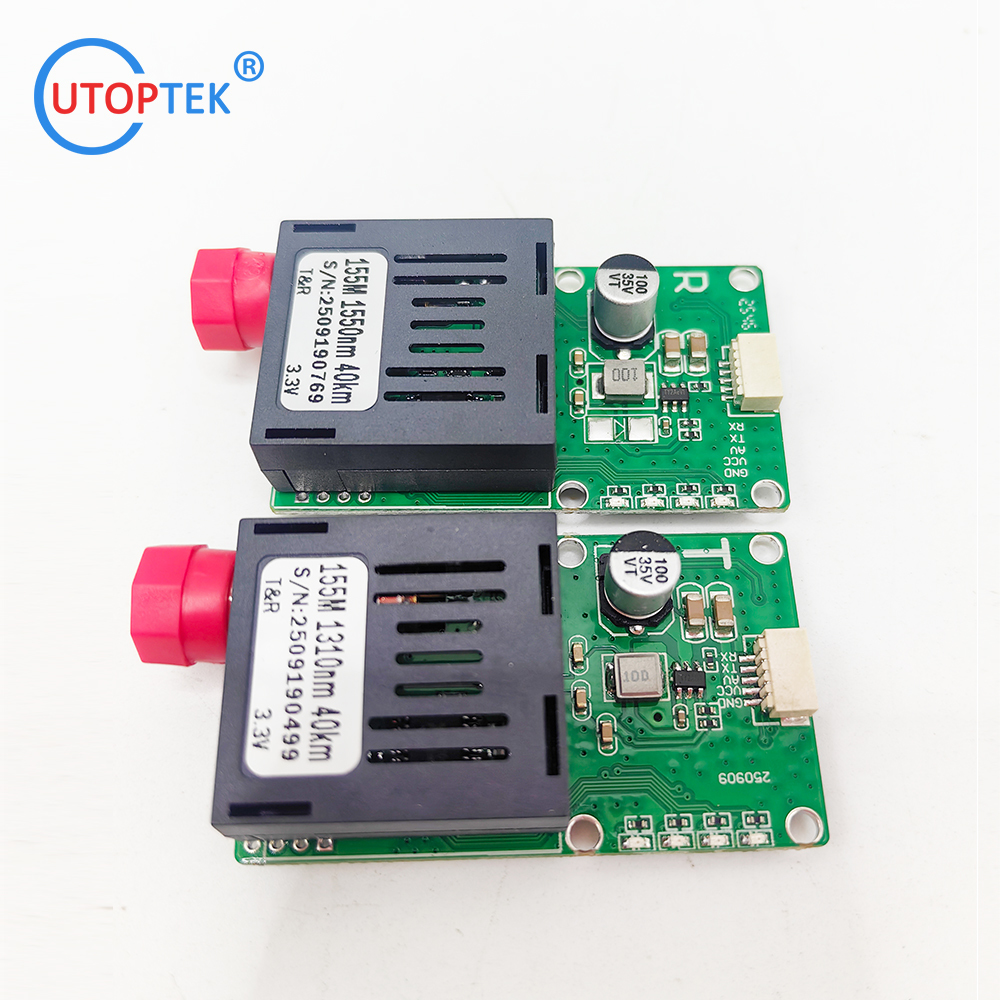

The FPV Fiber Optic Converter is a high-performance, low-latency device designed to transmit FPV (First-Person View) video and control signals over fiber optic cables in drone/UAV applications. It replaces traditional copper-based transmission with optical fiber, offering superior EMI immunity, longer range, and reduced weight. it utilizes fiber optic transmission technology to achieve long-distance lossless transmission of CVBS video signals and TTL control signals, making the image output smoother. The maximum transmission distance can reach 100 kilometers, suitable for complex electromagnetic environment scenarios such as drone racing, aerial photography, and industrial inspection. The product is divided into two parts: sky end (TX1310nm) and ground end (RX1550nm), which are used in pairs. The sky end is connected to the drone, and the ground end is connected to the controller. By using fiber optic as a high-speed and low latency data transmission medium, high-definition video signals captured by drones are transmitted back to the ground control station in real-time, providing pilots with an immersive flying experience. Fiber optic transmission, with its ultra large bandwidth, strong anti-interference ability, and extremely low latency, greatly enhances the performance and application range of FPV unmanned aerial vehicles.

 Ultra-low latency

 Fiber optic interface: Single-mode (SM) or Multi-mode (MM) options

 Long-distance transmission: Up to 20-120 km (SM) / 500m (MM)

 The fiber optic medium type is single-mode single fiber, default FC interface

 Supports HD (720P@60Hz) and analog FPV signals

 Plug-and-play operation with standard FPV equipment

 Support synchronous transmission of CVBS video signal+TTL/UART control signal

 Suitable for simulated camera and CVBS camera

 Optical communication technology can effectively resist electromagnetic interference

 The working temperature can be within the range of -20~70 °C

 Equipment safety, reliability, stable performance, and overall lightweight

 Strong anti-interference ability, large transmission bandwidth, and long distance

Customers' Feedbacks:

FAQ:

A1: Fiber Media Converter is a device designed to convert optical signals from one fiber type to another type, which is provided by UTOPTEK. The model number is UT-MC3101-SC20. It has CE certification, and comes with 2 minimum order quantity. It can be packaged in 60pcs/Carton and delivery time is 2-3days. Payment terms include T/T, WU, Paypal, Alipay, and RMB pay. The supply ability is 5000pcs per week.

A2: The brand name of Fiber Media Converter is UTOPTEK.

A3: Fiber Media Converter is from China.

A4: The minimum order quantity is 2.

A5: The payment terms include T/T, WU, Paypal, Alipay, and RMB pay.
